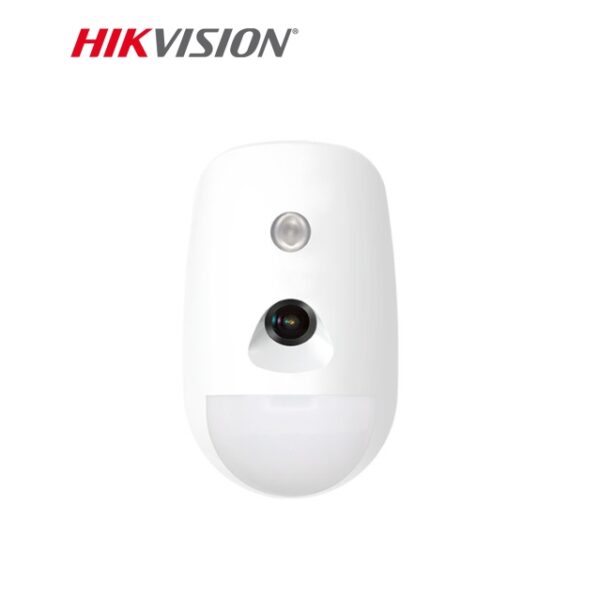

Hikvision AX PRO Series DS-PDPC12PF-EG2-WB Wireless PIRCAM Detector with Image Verification Colorvu

Description

•

  Detection Performance

  • Detection Method Passive Infrared;Video Verification
  • Detection Range 12m
  • Detection Angle 85.9°
  • Detection Zones 52
  • Detectable Speed 0.3～2m/s
  • Sensitivity High;Auto;Pet
  • Pet Immunity 30Kg
  • White Light Filter 6500lux
  • Digital Temperature Compensation Support
  • Creep Zone Protection Support

  Feature

  • Digital Processing Support
  • Sealed Optics Support
  • Tamper Protection Front;Rear
  • Environment Temperature Indicator Support
  • Signal Strength Indicator Support

  Video

  • Field Angle 88°(H), 68°(V)
  • Image Type JPEG
  • Resolution 160*120;320*240;640*480
  • Fill Light WHITE Light
  • Fill Range 12m
  • Day/Night Switch Color

  Interface

  • Power Switch Power Up Enrolling
  • LED IndicatorBlue (Alarm)

  Transmission

  • Transmission Technology CAM-X Wireless
  • Transmission Method Two-Way RF Wireless
  • Transmission Frequency 433MHz
  • Transmission Security AES-128 Encryption
  • Transmission Range (Free Space)800m
  • Enrolling MethodPower up;Remote ID;QR Code

  Electrical Characteristics

  • Power Supply Battery Powered
  • Battery Type CR123A × 3
  • Typical Voltage 3V
  • Standard Battery Life –  6 years in work status (being triggered and completely uploading captures twice every week)

  General

  • Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity 10% to 90%
  • Dimension(WxHxD) 72.2mm × 120.5mm × 56.7mm
  • 210g
  • Mounting Height 1.8 to 2.4m
  • Mounting Method Wall
  • Application Scenario Indoor
  • Bracket Optional Wall & Ceiling Accessory
